30036XT3G449TS WEG 300HP THREE PHASE EXPLOSION PROOF MOTOR 12408384

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

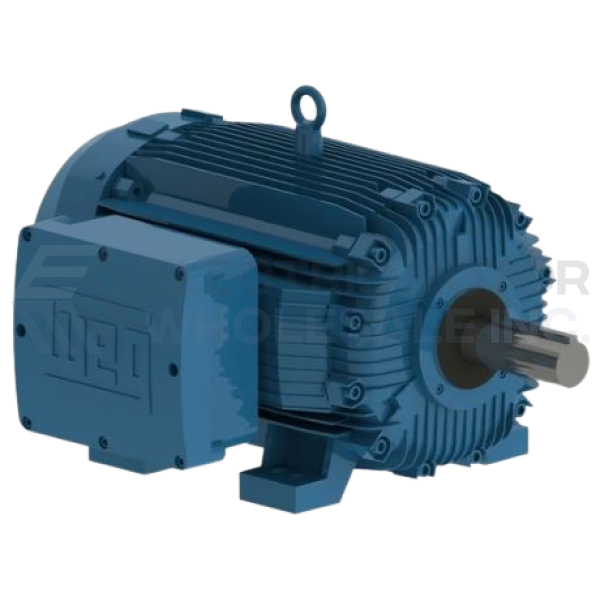

300HP WEG 3575RPM 449TS TEFC 3PH EXPLOSION PROOF MOTOR 30036XT3G449TS

Picture is for reference only.

Part Number:

30036XT3G449TS

Model/Spec Number:

12408384

Manufacturer:

WEG

30036XT3G449TS WEG 300HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

MSRP: $48,747.00

Regular Price

USD

43,384

QTY

Weight:

3,194 lbs

Dimensions:

41 x 58 x 34 inches

HS Code:

8501.53.0000

UPC:

7892304606872

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1
- Constant Torque - 2:1 Class 1
2 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Design A
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
