25036XT3G447TS WEG 250HP THREE PHASE EXPLOSION PROOF MOTOR 11924426

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

250HP WEG 3570RPM 447TS TEFC 3PH EXPLOSION PROOF MOTOR 25036XT3G447TS

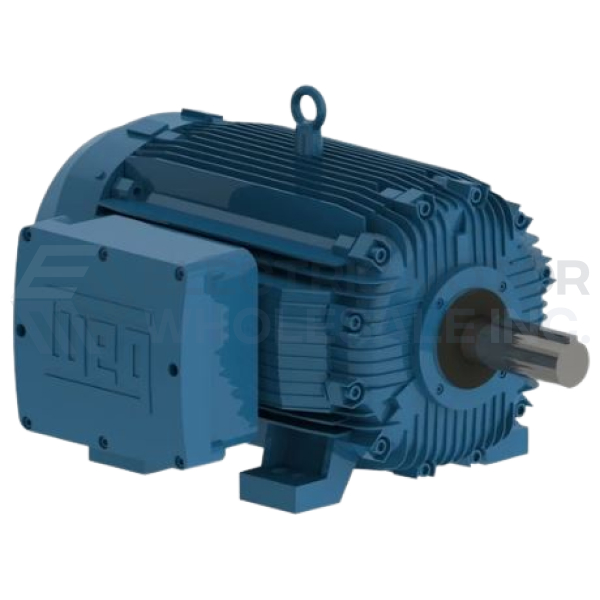

Picture is for reference only.

Part Number:

25036XT3G447TS

Model/Spec Number:

11924426

Manufacturer:

WEG

25036XT3G447TS WEG 250HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

MSRP: $31,124.00

Regular Price

USD

27,700

QTY

Weight:

2,767 lbs

Dimensions:

41 x 50 x 34 inches

HS Code:

8501.53.0000

UPC:

7909018159447

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 2:1 Class 1&2
2 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
