20036XT3G447TS WEG 200HP THREE PHASE EXPLOSION PROOF MOTOR 14315330

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

200HP WEG 3575RPM 447TS TEFC 3PH EXPLOSION PROOF MOTOR 20036XT3G447TS

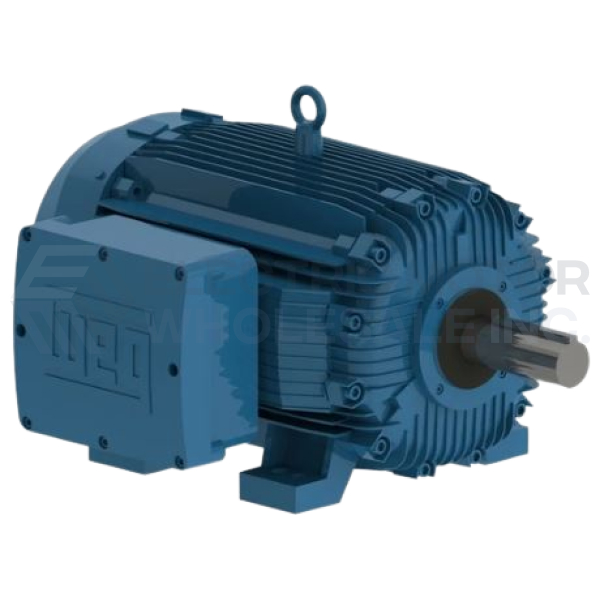

Picture is for reference only.

Part Number:

20036XT3G447TS

Model/Spec Number:

14315330

Manufacturer:

WEG

20036XT3G447TS WEG 200HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

MSRP: $29,446.00

Regular Price

USD

26,206

QTY

Weight:

2,614 lbs

Dimensions:

46 x 52 x 34 inches

HS Code:

8501.53.4000

UPC:

7909323991169

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 2:1 Class 1&2
2 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
