15012XT3G504 WEG 150HP THREE PHASE EXPLOSION PROOF MOTOR 12408378

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

150HP WEG 1190RPM 504/5T TEFC 3PH EXPLOSION PROOF MOTOR 15012XT3G504

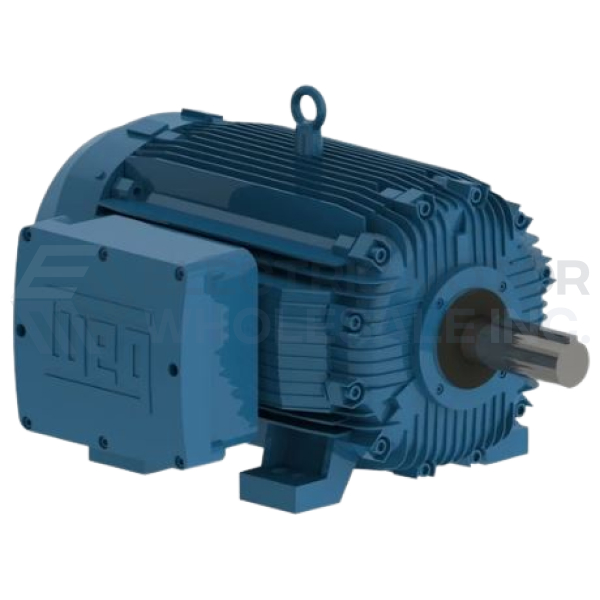

Picture is for reference only.

Part Number:

15012XT3G504

Model/Spec Number:

12408378

Manufacturer:

WEG

15012XT3G504 WEG 150HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

MSRP: $32,370.00

Regular Price

USD

28,809

QTY

Weight:

2,893 lbs

Dimensions:

44 x 60 x 36 inches

HS Code:

8501.53.4000

UPC:

7892304607220

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 2:1 Class 1&2
3 5/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
With insulated non drive end housing
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
