10036XT3G405TS WEG 100HP THREE PHASE EXPLOSION PROOF MOTOR 12408375

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

100HP WEG 3550RPM 404/5TS TEFC 3PH EXPLOSION PROOF MOTOR 10036XT3G405TS

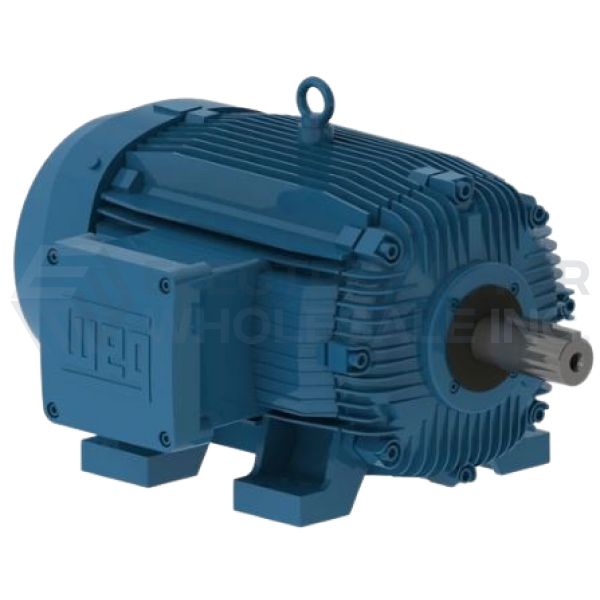

Picture is for reference only.

Part Number:

10036XT3G405TS

Model/Spec Number:

12408375

Manufacturer:

WEG

10036XT3G405TS WEG 100HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

MSRP: $12,999.00

Regular Price

USD

11,569

QTY

Weight:

1,352 lbs

Dimensions:

35 x 42 x 30 inches

HS Code:

8501.53.4000

UPC:

7892304607909

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 2:1 Class 1&2
2 1/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
