10012XT3G444T WEG 100HP THREE PHASE EXPLOSION PROOF MOTOR 11496971

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

100HP WEG 1185RPM 444/5T TEFC 3PH EXPLOSION PROOF MOTOR 10012XT3G444T

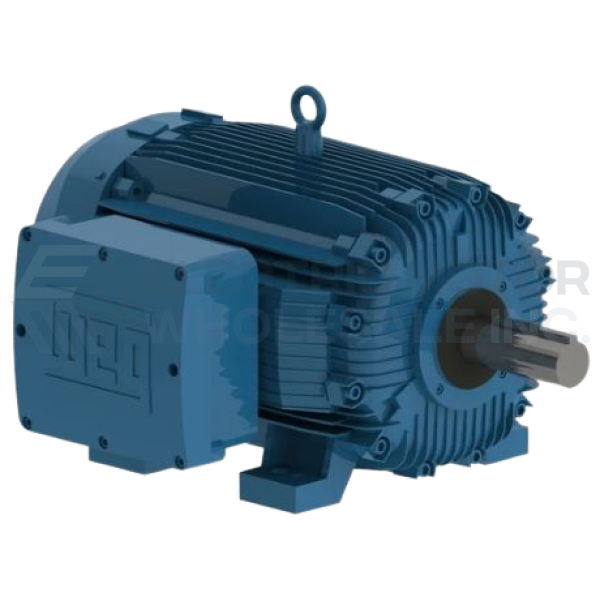

Picture is for reference only.

Part Number:

10012XT3G444T

Model/Spec Number:

11496971

Manufacturer:

WEG

10012XT3G444T WEG 100HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

MSRP: $21,032.00

Regular Price

USD

18,718

QTY

Weight:

2,263 lbs

Dimensions:

41 x 50 x 34 inches

HS Code:

8501.53.4000

UPC:

7891327286801

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 2:1 Class 1&2
2 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
