50HP WEG 3565RPM 324JP ODP 3PH MOTOR 05036OT3E324JPV

50HP WEG 3565RPM 324JP ODP 3PH MOTOR 05036OT3E324JPV

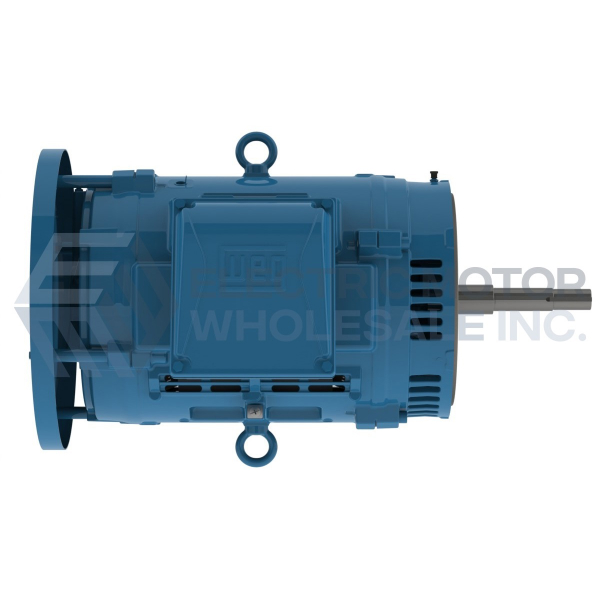

JP ODP CAST IRON FOOTLESS 284-324.jpg
Picture is for reference only.

Part Number:

05036OT3E324JPV

Model/Spec Number:

13469123

Manufacturer:

Weg Obsolete
05036OT3E324JPV WEG 50HP Three Phase JP Pump Motor is designed to meet demanding applications in environments where dirt and humidity are minimal.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

519 lbs

Dimensions:

28 x 39 x 28 inches

HS Code:

8501.52.0000

Technical Details

Brand:

WEG

Application:

Closed Coupled

Output HP:

50

Output KW:

37

Output RPM:

3565

Frame Size NEMA:

324JP

Mount NEMA:

Footless

Enclosure NEMA:

ODP

Enclosure IEC:

IP23

Voltage:

230/460

Product Information Packet

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

519 lbs

Dimensions:

28 x 39 x 28 inches

HS Code:

8501.52.0000
