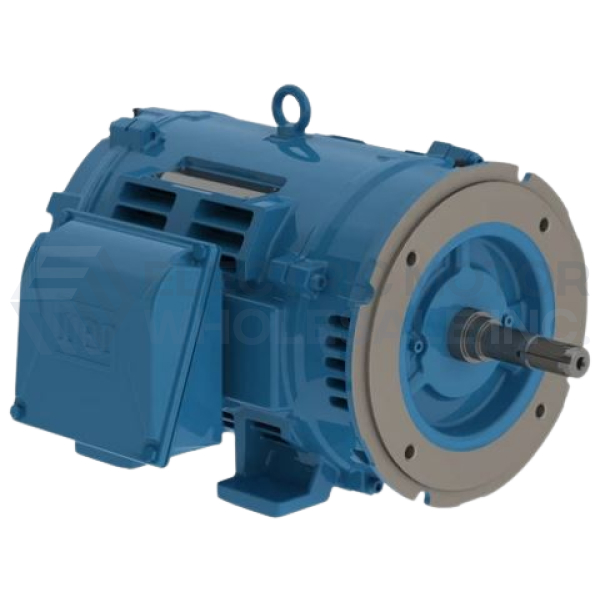

30HP WEG 3545RPM 284JM ODP 3PH PUMP MOTOR 03036OT3E284JM-W40

WEG Three Phase JM Pump Motor is designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation. Features: Inverter Rated 1000:1 VT NEMA Premium efficiency rating Durable cast iron frame For rolled steel: 50/60Hz rated (same HP at 50Hz with a 1.0 SF) For cast iron: 50Hz at reduced HP, IE3 efficiency, and CE mark Class F insulation (Impregnation resin and magnet wire are class H) F1 mounted (cast iron frames are F2 convertible) Stainless steel nameplate - laser etched with high contrast background Regreasable ball bearings
