10HP WEG 3510RPM 215TC TEFC 1PH MOTOR 01036ES1E215TC
10HP WEG 3510RPM 215TC TEFC 1PH MOTOR 01036ES1E215TC

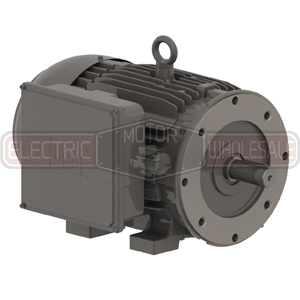

Picture is for reference only.
Part Number:
01036ES1E215TCModel/Spec Number:
10016582Manufacturer:
Weg ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
156 lbsDimensions:
12 x 18 x 12 inchesHS Code:
8501.40.6040UPC:
7890208697071Technical Details
Specifications
Application: | General Purpose |
Output HP: | 10 |
Output KW: | 7.5 |
Output RPM: | 3510 |
Frame NEMA: | 215TC |
Mount NEMA: | C-Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 208-230/460 |
Frequency (Hz): | 60 |
Documentation
Additional Information
WEG Single Phase General Purpose Cast Iron Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- C-Face mounting provisions with base
- Ball bearings
- Class F insulation
- F1 mounted
- V-ring seals
- NPT Threaded holes in terminal box
- Cannot be modified with terminal box on the opposite side
- Uses drip cover kit 175932.00
Click below to view suggested functional replacement.
