5HP WEG 3500RPM 184TC TEFC 1PH MOTOR 00536ES1E184TC
5HP WEG 3500RPM 184TC TEFC 1PH MOTOR 00536ES1E184TC

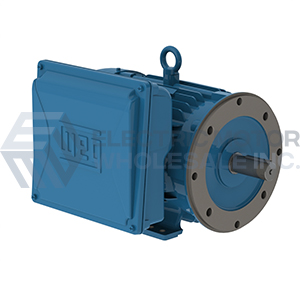

Picture is for reference only.
Part Number:
00536ES1E184TCModel/Spec Number:
10016384Manufacturer:
Weg ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
102 lbsDimensions:
12 x 18 x 12 inchesHS Code:
8501.40.6040UPC:
7890208504775Technical Details
Specifications
Application: | General Purpose |
Output HP: | 5 |
Output KW: | 3.7 |
Output RPM: | 3500 |
Frame NEMA: | 184TC |
Mount NEMA: | C-Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 208-230/460 |
Frequency (Hz): | 60 |
Documentation
Additional Information
WEG Single Phase General Purpose Cast Iron Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- C-Face mounting provisions with base
- Ball bearings
- Class F insulation
- F1 mounted
- V-ring seals
- NPT Threaded holes in terminal box
- Cannot be modified with terminal box on the opposite side
- Uses drip cover kit 175932.00
Click below to view suggested functional replacement.
