3HP WEG 1750RPM 184T ODP 1PH COMPRESSOR DUTY MOTOR 00318OS1CCDOL184T
3HP WEG 1750RPM 184T ODP 1PH COMPRESSOR DUTY MOTOR 00318OS1CCDOL184T

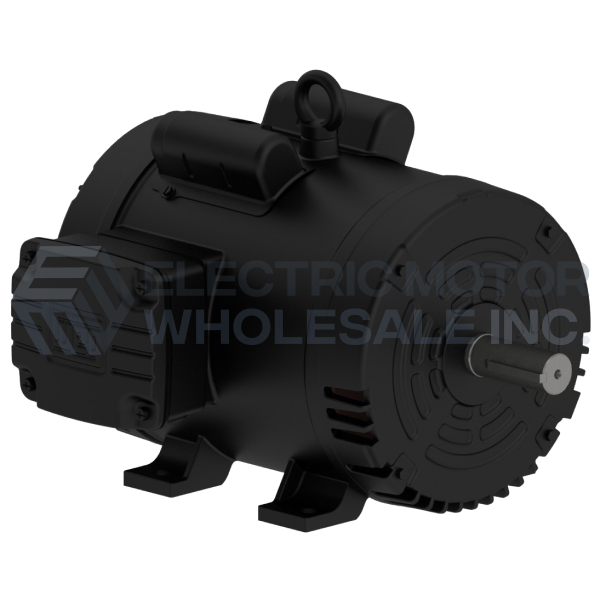

Picture is for reference only.
Part Number:
00318OS1CCDOL184TModel/Spec Number:
11396850Manufacturer:
Weg ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
131 lbsDimensions:
16 x 26 x 18 inchesHS Code:
8501.40.6040UPC:
7891327034051Technical Details
Specifications
Application: | General Purpose |
Output HP: | 3 |
Output KW: | 2.2 |
Output RPM: | 1750 |
Frame NEMA: | 184T |
Mount NEMA: | Base Mount |
Enclosure NEMA: | IC01 - ODP |
Enclosure IEC: | IP22 |
Voltage: | 208-230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
WEG Single Phase General Purpose Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- Ball bearings
- Class F insulation
- F1 mounted
- V-ring seals
- NPT Threaded holes in terminal box
- Cannot be modified with terminal box on the opposite side
- Manual Reset Thermal Overload Protector
- Compressor Duty
