3HP WEG 1800RPM 184T ODP 1PH MOTOR 00318OS1C184T

3HP WEG 1800RPM 184T ODP 1PH MOTOR 00318OS1C184T

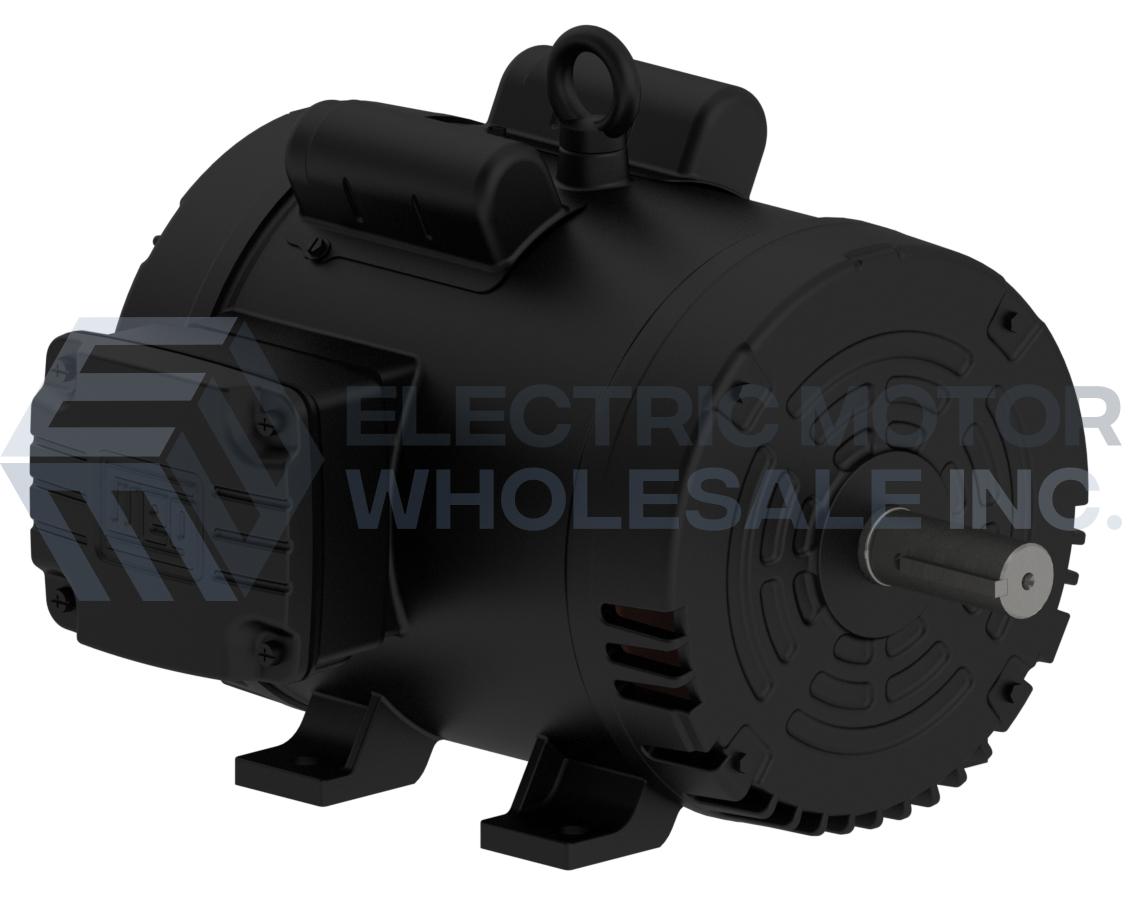

ODP CAST IRON FOOTED CSCR.jpg
Picture is for reference only.

Part Number:

00318OS1C184T

Model/Spec Number:

10021645

Manufacturer:

Weg Obsolete
00318OS1C184T WEG 3HP Single Phase General Purpose Cast Iron Motor provides high starting torque for the most demanding applications. Standard features such a v-rings provide versatility for indoor and outdoor applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

105 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

7892304127957

Technical Details

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1750

Frame NEMA:

184T

Mount NEMA:

Base Mount

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

208-230

Frequency (Hz):

60

Product Information Packet

WEG Single Phase General Purpose Cast Iron Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.

Features:

  • Ball bearings
  • Class F insulation
  • F1 mounted
  • V-ring seals
  • NPT Threaded holes in terminal box
  • Cannot be modified with terminal box on the opposite side
