3HP WEG 1740RPM W182/4T TEFC 1PH FARM DUTY MOTOR 00318ES1DFD184T
3HP WEG 1740RPM W182/4T TEFC 1PH FARM DUTY MOTOR 00318ES1DFD184T

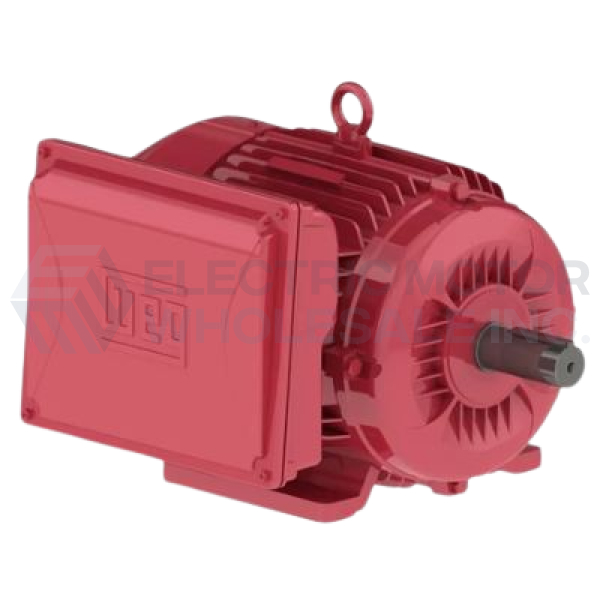

Picture is for reference only.
Part Number:
00318ES1DFD184TModel/Spec Number:
10371507Manufacturer:
Weg ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
88 lbsDimensions:
16 x 26 x 18 inchesHS Code:
8501.40.6040UPC:
7892304295304Technical Details
Specifications
Application: | Farm Duty, General Purpose |
Output HP: | 3 |
Output KW: | 2.2 |
Output RPM: | 1740 |
Frame NEMA: | W182/4T |
Mount NEMA: | Base Mount |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
WEG Single Phase General Purpose Cast Iron Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- Ball bearings
- Class F insulation
- F1 mounted
- V-ring seals
- NPT Threaded holes in terminal box
- Cannot be modified with terminal box on the opposite side
- Manual Reset Thermal Overload Protector
Click below to view suggested functional replacement.
Shipping Details
Weight:
88 lbsDimensions:
16 x 26 x 18 inchesHS Code:
8501.40.6040UPC:
7892304295304
