Product Overview

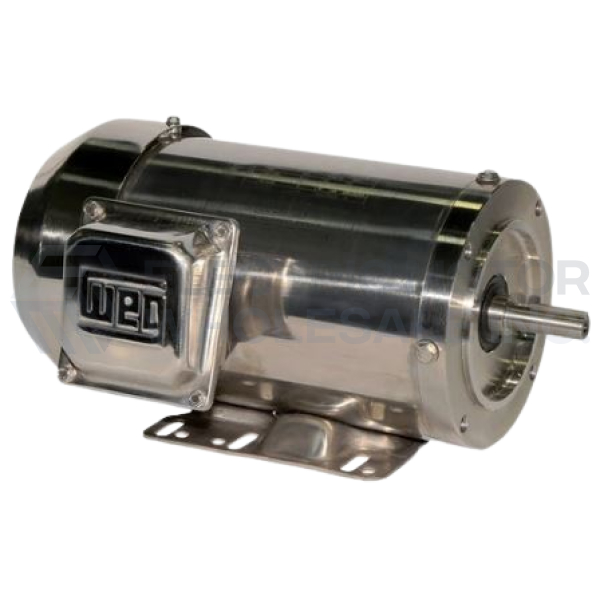

00218ET3ESS145TC WEG 2HP 3-Phase Stainless Steel Shark Motors for use in food processing, pharmaceutical and other applications requiring extreme cleanliness.

Part Number:

00218ET3ESS145TC

Model/Spec Number:

14418874

Manufacturer:

WEG

Technical Details

Specifications

Brand	WEG
Application	Washdown Stainless
Output HP	2
Output KW	1.5
Output RPM	1720
Frame Size NEMA	145TC

Documentation

Product Information Packet

WEG Washdown Brochure

Additional Information

APPLICATIONS: Shark Washdown line was designed for use in food processing, pharmaceutical and other applications requiring extreme cleanliness.

FEATURES:

Totally Enclosed, fan cooled
C-Face with base
Stainless Steel (AISI 304) shaft
Degree of protection: IP56
1-10HP NEMA Premium
Class F epoxy insulation
1.15 Service Factor
Meets NEMA MG1 Part 31 for Inverter Duty operation
Nameplate data laser etched on body of motor

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
