00209XT3E213T WEG 2HP THREE PHASE EXPLOSION PROOF MOTOR 14504365

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

2HP WEG 875RPM 213/5T TEFC 3PH EXPLOSION PROOF MOTOR 00209XT3E213T

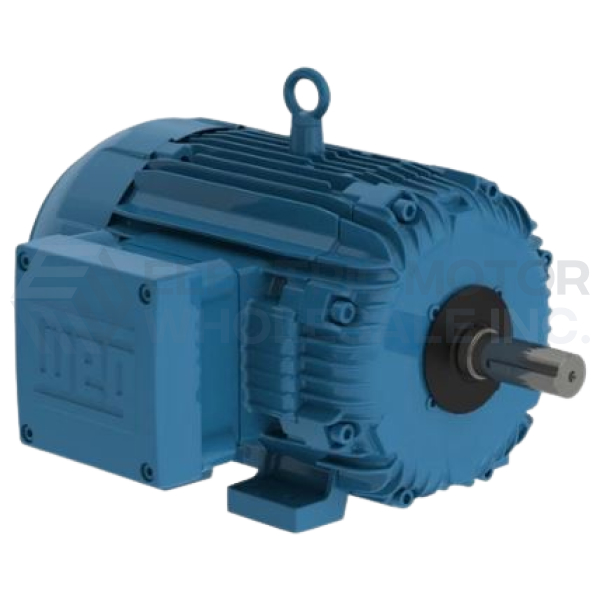

Picture is for reference only.

Part Number:

00209XT3E213T

Model/Spec Number:

14504365

Manufacturer:

WEG

00209XT3E213T WEG 2HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Ordering Notes

Factory lead times may apply for this product. Contact our Sales Team for delivery times.

MSRP: $2,439.00

Regular Price

USD

2,170

QTY

Weight:

191 lbs

Dimensions:

22 x 26 x 19 inches

HS Code:

8501.52.4000

UPC:

7909492269144

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1&2
- Constant Torque - 20:1 Class 1&2
1 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Cannot be modified with T Box on opposite side
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
