1/4HP MARATHON 1750RPM 56C TENV 12VDC MOTOR Z660

Catalog Number:  Z660
Model Number:  056E17T2001
Description:  1/4HP,1750RPM,56C,12VDC,TENV,PM
Ship Weight:  22 lbs.

MARATHON NEMA Low voltage permanent magnet DC motor suitable for installations having batteries or generator supplied low voltage DC.

FEATURES:

  • Totally enclosed non ventilated
  • 5/8" shaft output diameter
  • Permanently lubricated sealed ball bearings
  • NEMA C-Face with removable base
  • Class H insulation
  • Easy brush access with unique brush holder design
  • Oversized brushes for extra long life
  • High starting torque
  • Not tach adaptable
  • U.L. Recognized and CSA Certified
  • Footnotes: 85

Mechanical Features: Unique brush holder design provides easy access to brushes and integral, constant pressure brush/spring assembly for servicing. Larger over-sized brushes assure longer brush life. Heavy-duty, stamped steel, bolt-on base (removable). NEMA C face mounting flange at no additional cost. High strength rolled steel frame. Rugged die cast aluminum endshields with steel bearing inserts. Permanently lubricated sealed ball bearings. May be converted to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions using modification kit.

Electrical Features: High starting torques for heavy load applications. Linear speed/torque characteristics over entire speed range. Capable of dynamic braking for faster stops. Reversible rotation and simple two-lead connection. Convenient wiring access.

RPM 1800 HP 1/4 Serv. Factor 1.0
    Form Factor 1.0 Amps 21
Model # 056E17T2001 Form Factor 2   FLA2
Volts 12 Frame 56C
Max Amb 40 Duty CONT TYPE DN
Insul Class F Enclosure TENV Bearing OPE
Protection NOT Protector   Bearing PE
EFF 79.9% Torque 8.75 LB-IN
UL Yes CSA Yes CE No
Motor Wt. 22 LB Nameplate   Lubrication
Carton Label
Assembly   Mounting C-Face Rigid Rotation RECONN

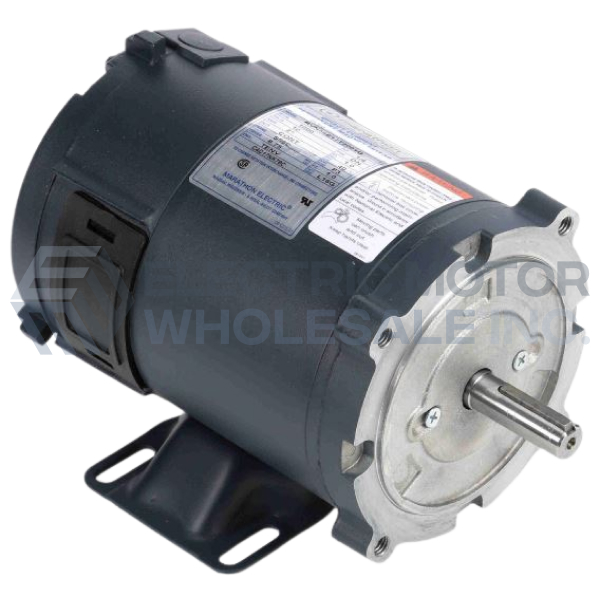

1/4HP MARATHON 1750RPM 56C TENV 12VDC MOTOR Z660
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z660
Stock # Z660
Price: $392.00
Compare At: $903.00
