5HP MARATHON 1800RPM 184T 208-230V DP 1PH MOTOR Z506A

Catalog Number:  Z506A
Model Number:  184TBDW7656
Description:  5HP,1800RPM,184T,208-230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  81 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • F1 Mounting only, cannot reassemble to F2
  • Heavy gauge steel frame and base
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnotes: 1, 13

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 81 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

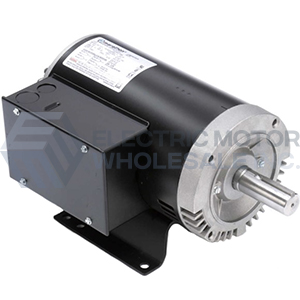

5HP MARATHON 1800RPM 184T 208-230V DP 1PH MOTOR Z506A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z506A
Stock # Z506A
Price: $493.00
Compare At: $1,134.00
