3HP MARATHON 1800RPM 184T 230V DP 1PH MOTOR Z502

Catalog Number:  Z502
Model Number:  184TBDR5326
Description:  3HP,1800RPM,184T,230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  55 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Capacitor Start/Capacitor Run design for reduced amperage
  • Manual overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • 1.0 Service Factor
  • Heavy gauge steel frame and base
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnote: 1

Phase 1 Insulation Class B
Frame 184T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 55 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

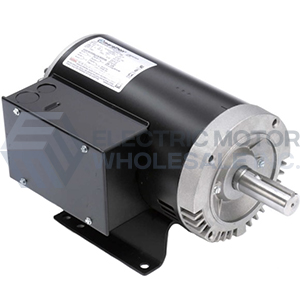

3HP MARATHON 1800RPM 184T 230V DP 1PH MOTOR Z502
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z502
Stock # Z502
Price: $410.00
Compare At: $944.00
