10HP MARATHON 3600RPM 215TZ DPAO 230V 1PH MOTOR Z315

Catalog Number: Z315
Model Number: 215TBDW7013
Description: 10HP,3600RPM,215TZ,230V,DPAO,1PH,60HZ
Ship Weight:  159 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Capacitor Start/Capacitor Run design for reduced amperage
  • Double sealed ball bearings
  • Continuous duty
  • Class F insulation system
  • Thermostats for thermal overload protection
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Capacitors included
  • Extra nameplate included, loose, for remote mounting
  • Footnotes: 1,F

Phase 1 Insulation Class F
Frame 215TZ Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F3 KVA Code E
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6307 Rotation SELECTIVE CCW
Opposite End Bearing Size 6206
Weight 159 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection Thermostats (Normally Closed)

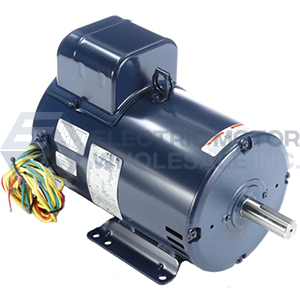

10HP MARATHON 3600RPM 215TZ DPAO 230V 1PH MOTOR Z315
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z315
Stock # Z315
Price: $940.00
Compare At: $1,515.00
Quantity:
