7.5HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z313

Catalog Number: Z313
Model Number: 184TBDR7324
Description: 7.5HP,3600RPM,184TZ,230V,DPAO,1PH,60HZ
Ship Weight:  89 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Capacitor Start/Capacitor Run design for reduced amperage
  • F1 Mounting only, cannot reassemble to F2
  • Double sealed ball bearings
  • Continuous duty
  • Class F insulation system
  • Thermostats for thermal overload protection
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Capacitors included
  • Extra nameplate included, loose, for remote mounting
  • Footnotes: 1,13

Phase 1 Insulation Class F
Frame 184TZ Duty CONT. AOM
Enclosure DPAO Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F3 OUT ODE BRKT RADIAL KVA Code G
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 89 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Thermostats (Normally Closed)

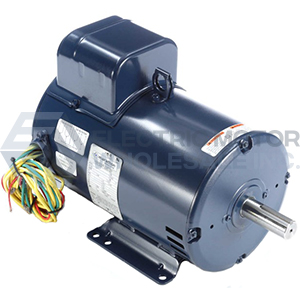

7.5HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z313
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z313
Stock # Z313
Price: $826.00
Compare At: $1,901.00
