3HP MARATHON 3600RPM 182TZ DPAO 230V 1PH MOTOR Z309

Catalog Number: Z309
Model Number: 182TCDR7013
Description: 3HP,3600RPM,182TZ,230V,DPAO,1PH,60/50HZ
Ship Weight:  67 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Capacitor Start Induction Run design
  • Double sealed ball bearings
  • Continuous duty
  • Class F insulation system
  • Thermostats for thermal overload protection
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Capacitors included
  • Extra nameplate included, loose, for remote mounting
  • Footnotes: 2

Phase 1 Insulation Class F
Frame 182TZ Duty CONTINUOUS
Enclosure DPAO Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 OUT ODE BRKT RADIAL KVA Code N/A
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 67 LB lbs
CE N CSA Y
UL N/A
Thermal Protection Thermostats (Normally Closed)

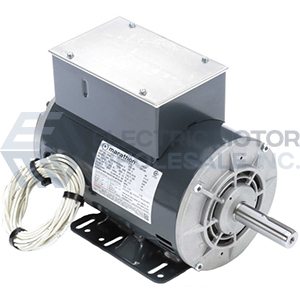

3HP MARATHON 3600RPM 182TZ DPAO 230V 1PH MOTOR Z309
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z309
Stock # Z309
Price: $538.00
Compare At: $1,239.00
