7.5HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z307A

Catalog Number: Z307A
Model Number: 184TBDW7009
Description: 7.5HP,3600RPM,184TZ,230V,DPAO,1PH,60HZ
Ship Weight:  95 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Capacitor Start/Capacitor Run design for reduced amperage
  • F1 Mounting only, cannot reassemble to F2
  • Double sealed ball bearings
  • Continuous duty
  • Class F insulation system
  • Thermostats for thermal overload protection (auto reset protector on Z304)
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Capacitors included
  • Extra nameplate included, loose, for remote mounting
  • Footnotes: 1,13

Phase 1 Insulation Class F
Frame 184TZ Duty CONTINUOUS AOM
Enclosure DPAO Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code F
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 95 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Thermostats (Normally Closed)

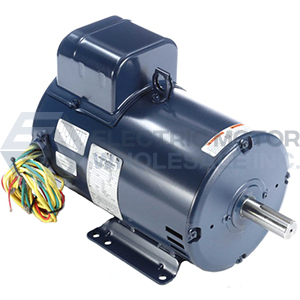

7.5HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z307A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z307A
Stock # Z307A
Price: $826.00
Compare At: $1,901.00
Quantity:
