7HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z306A

Catalog Number: Z306A
Model Number: 184TCDW7617
Description: 7HP,3600RPM,184TZ,230V,DPAO,1PH,60HZ
Ship Weight:  83 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Capacitor Start Induction Run design
  • F1 Mounting only, cannot reassemble to F2
  • Double sealed ball bearings
  • Continuous duty
  • Class F insulation system
  • Thermostats for thermal overload protection (auto reset protector on Z304)
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Capacitors included
  • Extra nameplate included, loose, for remote mounting
  • Footnotes: 2,13

Phase 1 Insulation Class F
Frame 184TZ Duty CONTINUOUS AOM
Enclosure DPAO Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code F
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 83 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Thermostats (Normally Closed)

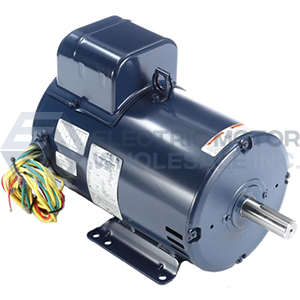

7HP MARATHON 3600RPM 184TZ DPAO 230V 1PH MOTOR Z306A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z306A
Stock # Z306A
Price: $740.00
Compare At: $1,703.00
