7.5HP MARATHON 1800RPM 215T 230V 1PH HI-TORQUE MOTOR Z122

Catalog Number: Z122
Model Number: 215TBFW7029
Description: 7.5HP,1800RPM,215T,230V,TEFC,1PH,60HZ
Ship Weight:  138 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

FEATURES:

  • Rigid base
  • 1.15 Service Factor
  • Ball bearings, shaft end mechanically locked on C-face models
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 1

Phase 1 Insulation Class F
Frame 215T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6307 Rotation SELECTIVE CCW
Opposite End Bearing Size 6206
Weight 138 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

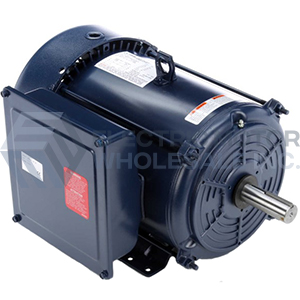

7.5HP MARATHON 1800RPM 215T 230V 1PH HI-TORQUE MOTOR Z122
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z122
Stock # Z122
Price: $1,061.00
Compare At: $2,444.00
