5HP MARATHON 1800RPM 184T 230V 1PH HI-TORQUE MOTOR Z121A

Catalog Number: Z121A
Model Number: 184TBFW7737
Description: 5HP,1800RPM,184T,230V,TEFC,1PH,60HZ
Ship Weight:  103 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

FEATURES:

  • Rigid base
  • 1.15 Service Factor
  • Ball bearings, shaft end mechanically locked on C-face models
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • F1 Mounting only, cannot reassemble to F2
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 1,13

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 103 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

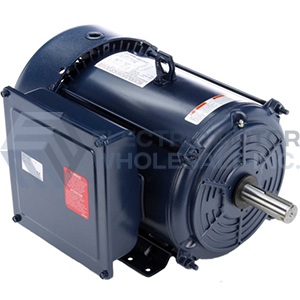

5HP MARATHON 1800RPM 184T 230V 1PH HI-TORQUE MOTOR Z121A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z121A
Stock # Z121A
Price: $716.00
Compare At: $1,648.00
Quantity:
