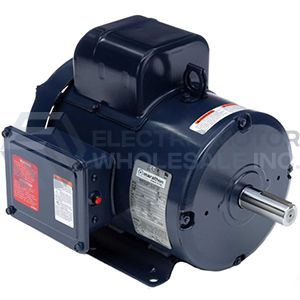

3HP MARATHON 1800RPM 184T 230V 1PH HI-TORQUE MOTOR Z120A
|Ship Weight:||92 lbs.|
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.
APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.
- Rigid base
- 1.15 Service Factor
- Ball bearings, shaft end mechanically locked on C-face models
- Capacitor Start/Capacitor Run design for reduced amperage
- Low temperature manual reset thermal protector
- Totally enclosed and fully gasketed construction for dirty environments
- Condensate drains
- F1 Mounting only, cannot reassemble to F2
- Shaft slinger
- UL Recognized and CSA Certified
- Footnotes: 1,13
|Mounting||Rigid||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||CAP START CAP RUN|
|Assembly||F1 ONLY||KVA Code||K|
|Drive End Bearing||BALL||IP Code||43|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6206||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6205|
|Weight||92 LB lbs|
|Thermal Protection||Manual Protector|
