5HP MARATHON 1800RPM 184T 208-230V 1PH MOTOR Z114A

Catalog Number: Z114A
Model Number: 184TBFW7070
Description: 5HP,1800RPM,184T,208-230V,TEFC,1PH,60HZ
Ship Weight:  98 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications requiring extra-high torque.


  • Rigid base
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Class F insulation
  • 1.15 Service Factor
  • Ball bearings
  • 300% and greater starting torque for hard-to-start applications
  • Totally enclosed and fully gasketed for dirty environments
  • 182TZ model has 7/8” shaft
  • Manual reset thermal protector
  • F1 Mounting only, cannot reassemble to F2
  • Condensate drains
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 1,13

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 98 LB lbs
UL Recognized Construction
Thermal Protection Manual Protector

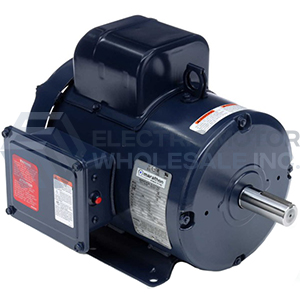

5HP MARATHON 1800RPM 184T 208-230V 1PH MOTOR Z114A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z114A
Stock # Z114A
Price: $758.00
Compare At: $1,745.00
