3HP MARATHON 1800RPM 184T 230V 1PH MOTOR Z113A

Catalog Number: Z113A
Model Number: 184TCFW9057
Description: 3HP,1800RPM,184T,230V,TEFC,1PH,60HZ
Ship Weight:  90 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications requiring extra-high torque.

FEATURES:

  • Rigid base
  • Capacitor Start Induction Run design
  • Class F insulation
  • 1.15 Service Factor
  • Ball bearings
  • 300% and greater starting torque for hard-to-start applications
  • Totally enclosed and fully gasketed for dirty environments
  • F1 Mounting only, cannot reassemble to F2
  • 182TZ model has 7/8” shaft
  • Manual reset thermal protector
  • Condensate drains
  • Shaft slinger
  • UL Recognized and CSA Certified
  • Footnotes: 2,13

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 90 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

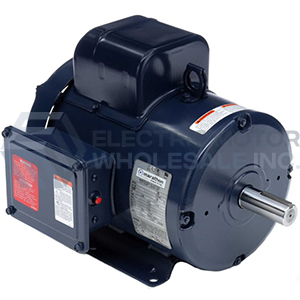

3HP MARATHON 1800RPM 184T 230V 1PH MOTOR Z113A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Z113A
Stock # Z113A
Price: $622.00
Compare At: $1,432.00
