5HP MARATHON 3600RPM 184TZ DPAO 208-220/440V 3PH MOTOR Y302A

Catalog Number: Y302A
Model Number: 184TCDW7615
Description: 5HP,3600RPM,184TZ,208-220/440V,DPAO,3PH,60HZ
Ship Weight:  71 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Crop dryers with air over/fan on shaft designs

FEATURES:

  • Ball bearings
  • Thermostats for thermal overload protection
  • 34” long leads exit elbow connector in bracket
  • Keyed shafts with 1/4”-20 UNC tapped hole in end
  • Extra nameplate included, loose, for remote mounting
  • Continuous duty
  • Class F insulation
  • F1 Mounting only, cannot reassemble to F2
  • Footnotes: 13

Phase 3 Insulation Class F
Frame 184TZ Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F3 KVA Code G
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6205
Weight 70.8 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection Thermostats (Normally Closed)

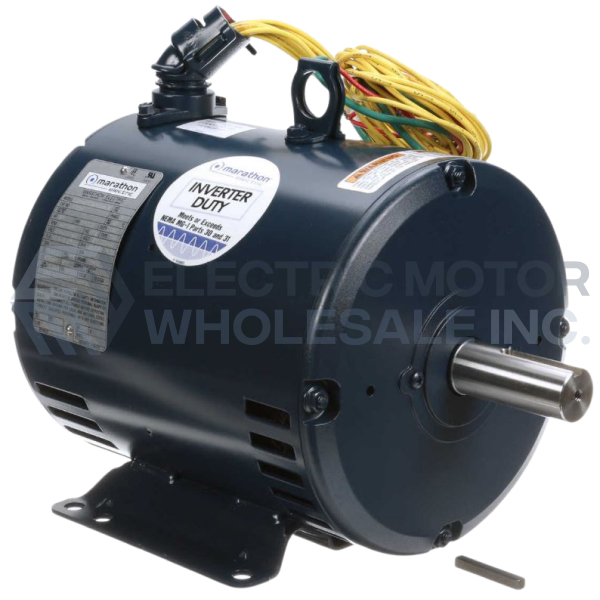

5HP MARATHON 3600RPM 184TZ DPAO 208-220/440V 3PH MOTOR Y302A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: Y302A
Stock # Y302A
Price: $549.00
Compare At: $1,264.00
