1/4HP MARATHON 1075RPM 48Y 230V OPAO 1PH MOTOR X474

1/4HP MARATHON 1075RPM 48Y 230V OPAO 1PH MOTOR X474

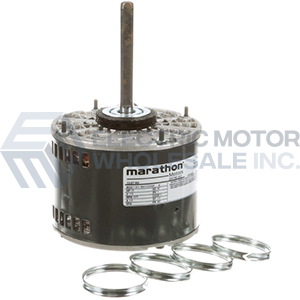

Picture is for reference only.

Part Number:

X474

Model/Spec Number:

048A11O1047

Manufacturer:

Marathon Obsolete
X474 MARATHON 1/4HP Single Phase PSC Direct Drive Fan and Blower Motor is designed to replace PSC and Shaded pole motors used in direct drive furnace, air conditioners, and other blowers.

Item Discontinued

Click below to request an agent review potential options.

Weight:

13 lbs

Dimensions:

10 x 14 x 10 inches

HS Code:

8501.40.4040

UPC:

722856038852

Technical Details

Application:

Fan & Blower

Output HP:

1/4

Output KW:

0.19

Output RPM:

1075

Frame NEMA:

48Y

Mount NEMA:

Direct Drive HVAC

Enclosure NEMA:

OPAO

Enclosure IEC:

IP10

Voltage:

230

Frequency (Hz):

60

Product Information Packet
