1/4HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X470

Catalog Number:  X470
Model Number:  48A11O885
Description:  1/4HP,1075RPM,48Y,208-230V,OPAO,1PH,60HZ
Design:  PERMANENT SPLIT CAPACITOR
Ship Weight:  9 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.



APPLICATIONS: Direct drive condenser fan needs to be mounted within the airflow of the fan for proper cooling.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • X470 Replaces Rheem / Ruud condenser fans
  • Automatic reset thermal protector (under locked rotor only)
  • 1-5/8” Thru-bolts, shaft end
  • Foot locating Set Screws on frame, 90 apart
  • Ball Bearings
  • Footnotes: 56,60

Phase

1

Insulation Class

B

Frame

48Y

Duty

CONTINUOUS

Enclosure

OPEN

Ambient

40

Mounting

Extended Studs - Footless

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 1 SPEED

Assembly

F1 ONLY

KVA Code

A

Drive End Bearing

BALL

IP Code

10

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

SELECTIVE CCW

Opposite End Bearing Size

6203



Weight

9 LB lbs



CE

N

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

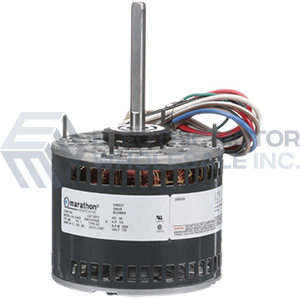

1/4HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X470
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X470
Stock # X470
Price: $80.00
Compare At: $140.00
