1/3HP MARATHON 1075RPM 48Y 460V TEAO 1PH MOTOR X457

Catalog Number:  X457
Model Number:  48A11T579
Description:  1/3HP,1075RPM,48Y,460V,TEAO,1PH,60HZ
Design:  SINGLE-SPEED, PERMANENT SPLIT CAPACITOR
Ship Weight:  17 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.



APPLICATIONS: Direct drive condenser fan is for all angle mounting. This motor needs to be mounted within the airflow of the fan for proper cooling.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic reset thermal protector (under locked rotor only)
  • Frame and end brackets enclosed
  • Single-Speed models
  • All Angle mounting
  • Lug mount kits and other accessories available
  • Ball bearings
  • Weather resistant reversing plug
  • 30” long leads
  • Shaft slinger
  • 1-1/4” Thru-bolts, shaft end
  • Weep holes with removable plugs on end brackets. Remove bottom plug after installation.
  • 60°C ambient
  • UL Recognized and CSA Certified
  • Footnotes: 36,45

Phase 1 Insulation Class B
Frame 48Y Duty CONT. AOM
Enclosure TEAO Ambient 60
Mounting Extended Studs - Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 1 SPEED
Assembly F1 (F2 Modification Available) KVA Code D
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 17 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)

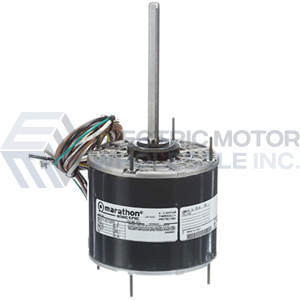

1/3HP MARATHON 1075RPM 48Y 460V TEAO 1PH MOTOR X457
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X457
Stock # X457
Price: $105.00
Compare At: $185.00
