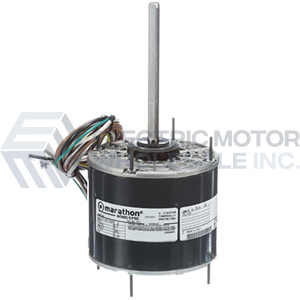

1/4HP MARATHON 1075RPM 48Y 460V TEAO 1PH MOTOR X456
|Design:||PERMANENT SPLIT CAPACITOR, SINGLE-SPEED|
|Ship Weight:||15 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Direct drive condenser fan is for all angle mounting. This motor needs to be mounted within the airflow of the fan for proper cooling.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
- Capacitor not included
- Automatic reset thermal protector (under locked rotor only)
- Frame and end brackets enclosed
- Single-Speed models
- All Angle mounting
- Lug mount kits and other accessories available
- Ball bearings
- Weather resistant reversing plug
- 30” long leads
- Shaft slinger
- 1-1/4” Thru-bolts, shaft end
- Weep holes with removable plugs on end brackets. Remove bottom plug after installation.
- 60°C ambient
- UL Recognized and CSA Certified
- Footnotes: 45
|Mounting||Extended Studs - Footless||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||PSC 1 SPEED|
|Assembly||F1 ONLY||KVA Code||C|
|Drive End Bearing||BALL||IP Code||43|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||15 LB lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Automatic Protector (under locked rotor only)|
