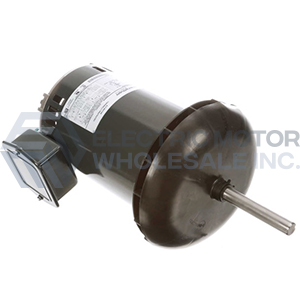

.4HP MARATHON 1075RPM 48Y 200-230/460V OPAO 1PH MOTOR X445
|Design:||PERMANENT SPLIT CAPACITOR, BELLY BAND|
|Ship Weight:||29 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
APPLICATIONS: Heavy duty design for commercial direct drive condenser fan mounted vertically, shaft up. This motor needs to be mounted within the airflow of the fan for proper cooling.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
- Capacitor not included
- Automatic reset thermal protector
- Shaft up mounting
- Shaft with flat
- Open frame and end brackets
- Unique Rain Shield fits over shaft to protect motor in vertical shaft up position
- Shaft slinger
- Will become build-up item when current stock is gone
- Ball bearings
- UL Recognized and CSA Certified
