1HP MARATHON 1075RPM 56YZ 208-230/460V TEAO 1PH MOTOR X433

Catalog Number:  X433
Model Number:  56A11O30
Description:  1HP,1075RPM,56YZ,208-230/460V,TEAO,1PH,60HZ
Ship Weight:  27 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.


APPLICATIONS: Condenser fan, installed outdoors. This motor needs to be mounted within the airflow of the fan for proper cooling.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.


  • Capacitor is not included
  • Automatic reset thermal protector (under locked rotor only)
  • Frame and shaft end bracket enclosed
  • Heavy gauge steel constructions
  • 56Y frame has non-NEMA BA dimension of 1.97”
  • Flat and keyway on shaft
  • Ball Bearings
  • UL Recognized and CSA Certified

Phase 1 Insulation Class B
Frame 56Y Duty CONT. AOM
Enclosure OPAO Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 1 SPEED
Assembly F1 ONLY KVA Code D
Drive End Bearing BALL IP Code 01
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 27 LB lbs
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)

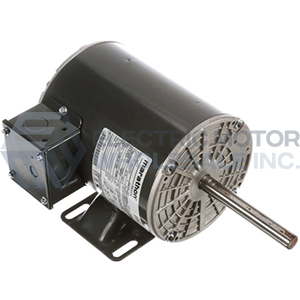

1HP MARATHON 1075RPM 56YZ 208-230/460V TEAO 1PH MOTOR X433
