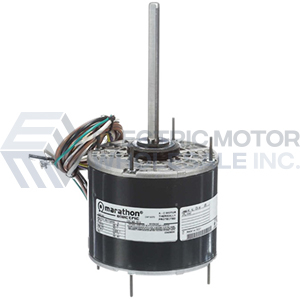

1/3HP MARATHON 1075RPM 48Y 208-230V TEAO 1PH MOTOR X413

APPLICATIONS: Direct drive condenser fan is for all angle mounting. This motor needs to be mounted within the airflow of the fan for proper cooling. PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired. FEATURES: Capacitor not included Automatic reset thermal protector (under locked rotor only) Frame and end brackets enclosed Single-Speed models All Angle mounting Lug mount kits and other accessories available Ball bearings Weather resistant reversing plug 30” long leads Shaft slinger 1-1/2” Thru-bolts on shaft end, 1” thrubolts on lead end Weep holes with removable plugs on end brackets. Remove bottom plug after installation. 60°C ambient UL Recognized and CSA Certified Footnotes: 45
