1/2HP MARATHON 1050RPM 48Y 230V OPAO 1PH MOTOR X295

Catalog Number:  X295
Model Number:  48A11O1410
Description:  1/2HP,1050RPM,48Y,230V,OPAO,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR
Ship Weight:  19 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This motor is Non-Returnable. Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our sales team to answer any questions you may have.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic thermal protection
  • Replaces York No. K44HXJAF-4955 & Fasco No. D873, A.O. Smith No. OYK1056, Magnetek No. 468
  • Fixed CW Rotation, viewing opposite shaft (or lead end) of motor
  • Footnotes: 15

Phase

1

Insulation Class

B

Frame

48Y

Duty

CONT. AOM

Enclosure

OPAO

Ambient

40

Mounting

Belly Band - Footless

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 1 SPEED

Assembly

F1 ONLY

KVA Code

B

Drive End Bearing

BALL

IP Code

01

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

FIXED CW

Opposite End Bearing Size

6203



Weight

19 LB lbs



CE

N

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

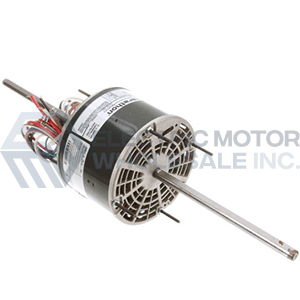

1/2HP MARATHON 1050RPM 48Y 230V OPAO 1PH MOTOR X295
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X295
Stock # X295
Price: $112.00
Compare At: $197.00
