1/4HP MARATHON 1625RPM 48Y 208-230V OPAO 1PH MOTOR X270

Catalog Number:  X270
Model Number:  48A17O149
Description:  1/4HP,1625RPM,48Y,208-230V,OPAO,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR
Ship Weight:  12 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Replacement motor for refrigeration equipment.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor included
  • Replaces Tyler No. 760, Fasco No. D870, & A.O. Smith No. OTY1024
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Automatic reset thermal protector
  • Resilient ring & thru-bolt mount
  • Open end bracket
  • Ball Bearings
  • BX connector included in frame
  • UL Recognized and CSA Certified
  • Footnotes: 1

Phase

1

Insulation Class

B

Frame

48Y

Duty

CONT. AOM

Enclosure

OPAO

Ambient

40

Mounting

Resilient Base - Extended Studs

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 1 SPEED

Assembly

F1 ONLY

KVA Code

A

Drive End Bearing

BALL

IP Code

01

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

SELECTIVE CCW

Opposite End Bearing Size

6203



Weight

12 LB lbs



CE

N/A

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

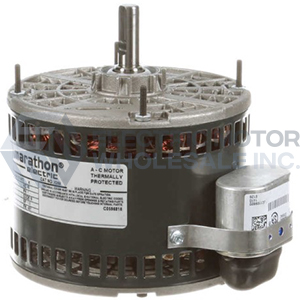

1/4HP MARATHON 1625RPM 48Y 208-230V OPAO 1PH MOTOR X270
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X270
Stock # X270
Price: $122.00
Compare At: $216.00
