1/4HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X262

Catalog Number:  X262
Model Number:  48A11D245
Description:  1/4HP,1075RPM,48Y,208-230V,OPAO,1PH,60/50HZ
Design: PERMANENT SPLIT CAPACITOR
Ship Weight:  15 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Replacement motor for refrigeration equipment.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic reset thermal protector
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • Resilient ring & thru-bolt mount
  • Open end bracket
  • Welded Rigid Base
  • Ball Bearings
  • UL Recognized and CSA Certified
  • Footnotes: 67,69,82

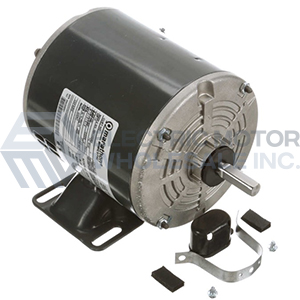

1/4HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X262
