1/5HP MARATHON 1075RPM 48Y 230V OPAO 1PH MOTOR X223

Catalog Number:  X223
Model Number:  48A11O2050
Description:  1/5HP,1075RPM,48Y,230V,OPAO,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR, SINGLE-SPEED
Ship Weight:  10 lbs.

This Marathon motor is Non-Returnable.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • X223 Replaces Carrier No. HC37VE230 & Fasco No. D842
  • Automatic reset thermal protector
  • Single Speed design
  • 3 lug mounting
  • Ball bearings
  • Fixed CCW Rotation, viewing opposite shaft (or lead end) of motor
  • Footnotes: 16

Phase

1

Insulation Class

B

Frame

48Z

Duty

CONTINUOUS AOM

Enclosure

OPAO

Ambient

40

Mounting

Three Lug Mount

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 1 SPEED

Assembly

F1 ONLY

KVA Code

A

Drive End Bearing

BALL

IP Code

10

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

FIXED CCW

Opposite End Bearing Size

6203



Weight

10 LB lbs



CE

N

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

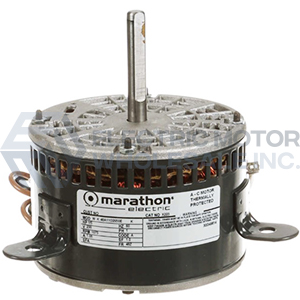

1/5HP MARATHON 1075RPM 48Y 230V OPAO 1PH MOTOR X223
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X223
Stock # X223
Price: $82.00
Compare At: $146.00
