1/2HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X221

1/2HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X221

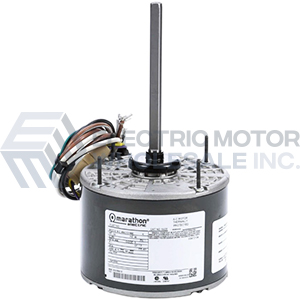

OPAO 48Y.jpg
Picture is for reference only.

Part Number:

X221

Model/Spec Number:

048A11O1526

Manufacturer:

Marathon Obsolete
X221 MARATHON 1/2HP Single Phase Direct drive Condenser Fan is mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. This motor needs to be mounted within the airflow of the fan for proper cooling.

Item Discontinued

Click below to request an agent review potential options.

Weight:

17 lbs

Dimensions:

10 x 16 x 10 inches

HS Code:

8501.40.4040

UPC:

722856037640

Technical Details

Application:

Condenser Duty

Output HP:

1/2

Output KW:

0.37

Output RPM:

1075

Frame NEMA:

48Y

Mount NEMA:

Vert. Shaft Up

Enclosure NEMA:

OPAO

Enclosure IEC:

IP10

Voltage:

208-230

Frequency (Hz):

60
