3/4HP MARATHON 1075RPM 56Z 208-230V OPAO 1PH MOTOR X218

Catalog Number:  X218
Model Number:  56A11O5313
Description:  3/4HP,1075RPM,56Z,208-230V,OPAO,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR, SINGLE-SPEED
Ship Weight:  34 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • X218 replaces Steveco Package unit 3100
  • Automatic reset thermal protector
  • Double shaft extension 1-1/2” long by 1/2” diameter with flat each end
  • Fixed CCW Rotation, viewing opposite shaft (or lead end) of motor
  • Footnotes: 16,21

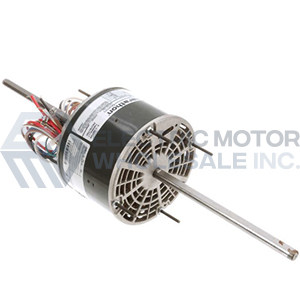

3/4HP MARATHON 1075RPM 56Z 208-230V OPAO 1PH MOTOR X218
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X218
Stock # X218
Price: $220.00
Compare At: $385.00
Quantity:
