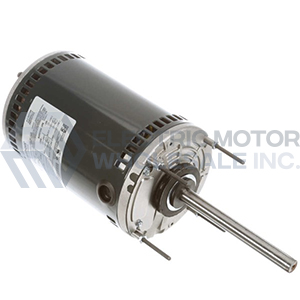

1/2HP MARATHON 825RPM 56Z 208-230V OPAO 1PH MOTOR X208
|Design:||SINGLE-SPEED, PERMANENT SPLIT CAPACITOR|
|Ship Weight:||22 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Direct drive condenser fan is mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. This motor needs to be mounted within the airflow of the fan for proper cooling.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
- Capacitor not included
- Automatic reset thermal protector (under locked rotor only)
- Lug mount kits and other accessories available
- Frame and shaft end bracket NOT enclosed, has an open frame
- 56Z/48Y frame
- Resilient ring mount, base not included
- Single-speed model
- Ball bearings
- Weather resistant reversing plug
- 1-5/8” Extended thru-bolts on shaft end
- 30” long leads
- Shaft with flat
- 40° C ambient
- Shaft slinger
- UL Recognized and CSA Certified
- Footnotes: 30
|Mounting||Resilient Rings - Extended Studs||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||PSC 1 SPEED|
|Assembly||F1 ONLY||KVA Code||B|
|Drive End Bearing||BALL||IP Code||22|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||22 LB lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Automatic Protector (under locked rotor only)|
