3/4HP MARATHON 1075RPM 56Y 208-230/460V OPAO 1PH MOTOR X207

Catalog Number:  X207
Model Number:  56A11O5311
Description:  3/4HP,1075RPM,56Y,208-230/460V,OPAO,1PH,60HZ
Design:  PERMANENT SPLIT CAPACITOR
Ship Weight:  31 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.



APPLICATIONS: Direct drive condenser fan mounted vertically, shaft up. This motor needs to be mounted within the airflow of the fan for proper cooling.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic reset thermal protector
  • Enclosed shaft end bracket with vented frame
  • Ball bearings
  • 30” long leads
  • Shaft slinger
  • 60°C ambient
  • 1-1/2” Thru-bolts, shaft end
  • Flat & keyway on shaft
  • UL Recognized and CSA Certified
  • Footnotes: 37,45

Phase 1 Insulation Class B
Frame 56Z Duty CONT. AOM
Enclosure OPAO Ambient 60
Mounting Resilient Rings - Extended Studs NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 1 SPEED
Assembly F1 ONLY KVA Code C
Drive End Bearing BALL IP Code 01
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 31 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection Automatic Protector

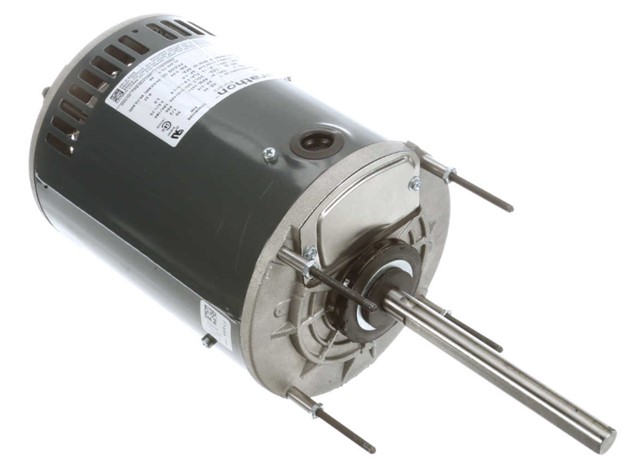

3/4HP MARATHON 1075RPM 56Y 208-230/460V OPAO 1PH MOTOR X207
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X207
Stock # X207
Price: $215.00
Compare At: $377.00
