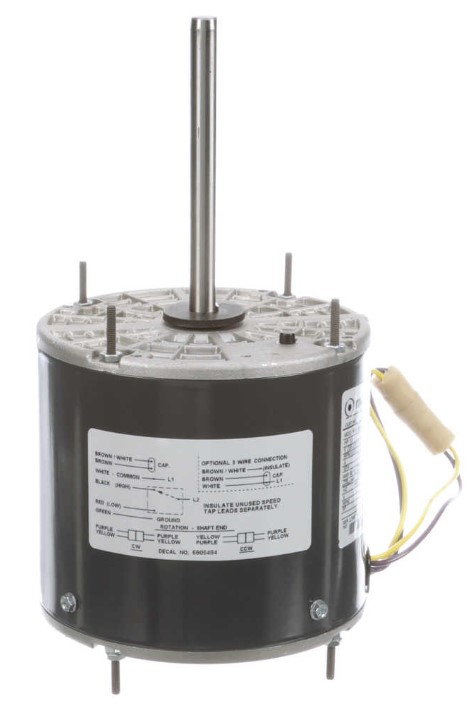

1/2-1/5HP MARATHON 1075RPM 48Y 230-208V TEAO 1PH MOTOR X076
|Design:||MULTI-SPEED, PERMANENT SPLIT CAPACITOR|
|Ship Weight:||19 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Direct drive fans for shaft up or horizontal mount. This motor needs to be mounted within the airflow of the fan for proper cooling.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
- Capacitor not included
- Replaces EMERSON No. 5465 and A.O. SMITH FE6002
- Automatic thermal protector (under locked rotor only)
- Ball Bearings
- 60°C ambient
- Weather resistant reversing plug
- Reversible by reconnection
- 36” long leads
- Extended thru-bolts, 8-32 1/2” on drive end, 3/4” on non-drive end
- Shaft slinger
- Four Locating screws on frame, 90O apart
- 1/2” x 5” long shaft with two flats 4.50” 90O apart
- UL Recognized and CSA Certified
1/2 HP @ 230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed Hi
1/2 HP @ 208 Volts, 12.5MFD (12.5DV) Capacitor(Not Included), Speed HI
1/3 HP @ 230 Volts, 10.0MFD (10DV)Capacitor(Not Included), Speed HI
1/3 HP @ 208 Volts, 12.5MFD (12.5DV) Capacitor(Not Included), Speed HI
1/4 HP @ 230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed LO
1/4 HP @ 208 Volts, 12.5MFD (12.5DV) Capacitor(Not Included), Speed LO
1/5 HP @ 230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed LO
1/5 HP @ 208 Volts, 12.5MFD (12.5DV) Capacitor(Not Included), Speed LO
|Mounting||Extended Studs - Footless||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||PSC 2 SPEED|
|Assembly||F1 ONLY||KVA Code||C|
|Drive End Bearing||BALL||IP Code||43|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||19 LB lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Automatic Protector (under locked rotor only)|
