3/4-1/5HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X075

Catalog Number:  X075
Model Number:  48A11O11063
Description:  3/4-1/5HP,1075RPM,48Y,115V,OPAO,1PH,60HZ
Design: MULTI-SPEED, PERMANENT SPLIT CAPACITOR
Ship Weight:  22 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Residential and commercial furnaces, air conditioners, exhaust fans, and other air handling equipment installed in clean and dry environments.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic thermal protector (under locked rotor only)
  • Replaces EMERSON No. 5470 and A.O. SMITH No. FDL6002
  • Open end brackets
  • 2 1/4” Resilient rings
  • 1/2” x 5” long shaft with two flats 4.50” 90O apart
  • Weather resistant reversing plug
  • Reversible by reconnection
  • 36” long leads
  • Extended thru-bolts, 8-32 1/2” on drive end, 3/4” on non-drive end
  • UL Recognized and CSA Certified
  • Ball Bearings

Capacitor Requirements:

3/4 HP @ 208-230 Volts, 20.0MFD (20DV) Capacitor(Not Included), Speed HI

1/2 HP @ 208-230 Volts, 20.0MFD (20DV) Capacitor(Not Included), Speed MED-HI

1/2 HP @ 208-230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed HI

1/3 HP @ 208-230 Volts, 20.0MFD (20DV)Capacitor(Not Included), Speed MED-LO

1/3 HP @ 208-230 Volts, 10.0MFD (10DV)Capacitor(Not Included), Speed MED-HI

1/4 HP @ 208-230 Volts, 20.0MFD (20DV) Capacitor(Not Included), Speed LO

1/4 HP @ 208-230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed MED-LO

1/5 HP @ 208-230 Volts, 10.0MFD (10DV) Capacitor(Not Included), Speed LO

Phase 1 Insulation Class B
Frame 48Y Duty CONT. AOM
Enclosure OPAO Ambient 40
Mounting Resilient Rings - Extended Studs NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 4 SPEED
Assembly F1 ONLY KVA Code F
Drive End Bearing BALL IP Code 01
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 22 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)

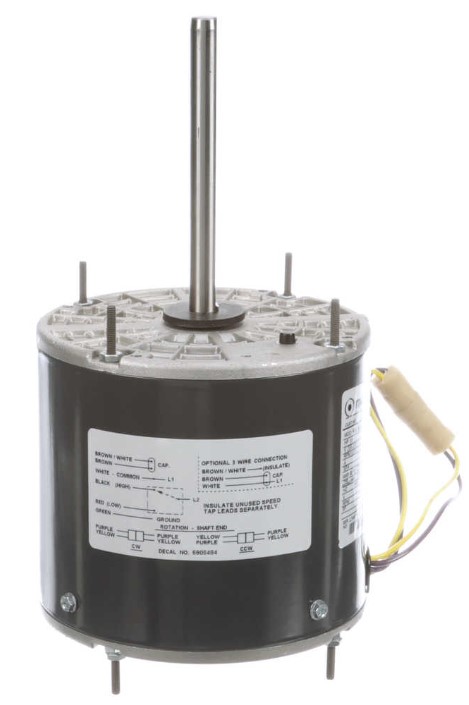

3/4-1/5HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X075
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X075
Stock # X075
Price: $105.00
Compare At: $185.00
