1/3-1/6HP MARATHON 1075RPM 48Y 230-208V TEAO 1PH MOTOR X072

Catalog Number:  X072
Model Number:  48A11T646
Description:  1/3-1/6HP,1075RPM,48Y,208-230V,TEAO,1PH,60HZ
Design: MULTI-SPEED, PERMANENT SPLIT CAPACITOR
Ship Weight:  14 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Direct drive fans for shaft up or horizontal mount. This motor needs to be mounted within the airflow of the fan for proper cooling.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Replaces EMERSON No. 5462 and A.O. SMITH FSE6000
  • Automatic thermal protector (under locked rotor only)
  • Ball Bearings
  • 60°C ambient
  • Weather resistant reversing plug
  • Reversible by reconnection
  • 36” long leads
  • Extended thru-bolts, 8-32 1/2” on drive end, 3/4” on non-drive end
  • Shaft slinger
  • Four Locating screws on frame, 90O apart
  • 1/2” x 5” long shaft with two flats 4.50” 90O apart
  • UL Recognized and CSA Certified

Capacitor Requirements:

1/3 HP @ 230 Volts, 5.0MFD (5DV) Capacitor(Not Included), Speed Hi

1/3 HP @ 208 Volts, 7.5MFD (7.5DV) Capacitor(Not Included), Speed HI

1/4 HP @ 230 Volts, 5.0MFD (5DV) Capacitor(Not Included), Speed HI

1/4 HP @ 208 Volts, 7.5MFD (7.5DV) Capacitor(Not Included), Speed HI

1/5 HP @ 230 Volts, 5.0MFD (5DV) Capacitor(Not Included), Speed LO

1/5 HP @ 208 Volts, 7.5MFD (5DV) Capacitor(Not Included), Speed LO

1/6 HP @ 230 Volts, 5.0MFD (5DV) Capacitor(Not Included), Speed LO

1/6 HP @ 208 Volts, 7.5MFD (7.5DV) Capacitor(Not Included), Speed LO



Phase 1 Insulation Class B
Frame 48Z Duty CONT. AOM
Enclosure TEAO Ambient 60
Mounting Extended Studs - Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 2 SPEED
Assembly F1 ONLY KVA Code C
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 14 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)

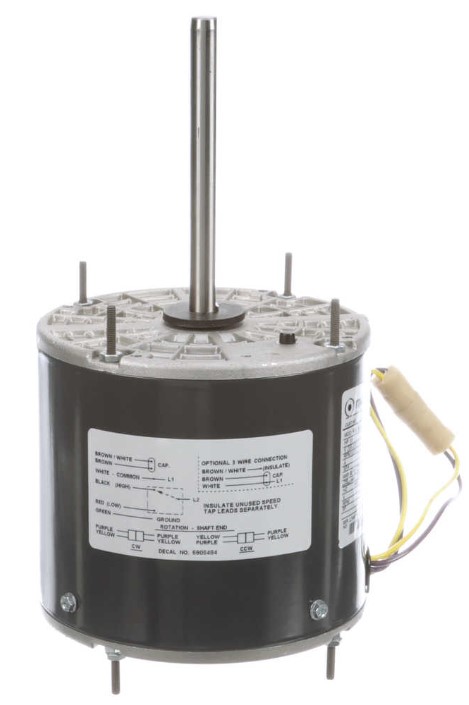

1/3-1/6HP MARATHON 1075RPM 48Y 230-208V TEAO 1PH MOTOR X072
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X072
Stock # X072
Price: $109.00
Compare At: $191.00
Quantity:
