1/3HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X045

Catalog Number:  X045
Model Number:  48A11O656
Description:  1/3HP,1075RPM,48Y,208-230V,OPAO,1PH,60HZ
Design: PERMANENT SPLIT CAPACITOR, THREE-SPEED
Ship Weight:  17 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Designed to replace PSC and Shaded pole motors, used in direct drive furnace, air conditioners, and other blowers.

PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the "start" windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.

FEATURES:

  • Capacitor not included
  • Automatic reset thermal protector
  • Open frame and brackets
  • Three-Speed design
  • 30” leads
  • CCW rotation, fixed lead end
  • 1” extended Thru-bolts both ends
  • 20” overall length
  • Ball bearings
  • Includes length adapter bracket
  • UL Recognized and CSA Certified
  • Footnotes: 71

Phase

1

Insulation Class

B

Frame

48Y

Duty

CONTINUOUSAOM

Enclosure

OPAO

Ambient

40

Mounting

Resilient Rings - Extended Studs

NEMA Design

NO DESIGN CODE

Orientation

HORIZONTAL

Starting Type

PSC 3 SPEED

Assembly

F1 ONLY

KVA Code

E

Drive End Bearing

BALL

IP Code

10

Opposite End Bearing

BALL



Drive End Bearing Size

6203

Rotation

FIXED CCW

Opposite End Bearing Size

6203



Weight

17 LB lbs



CE

N

CSA

Y

UL

Recognized Construction and Protector

Thermal Protection

Automatic Protector (under locked rotor only)

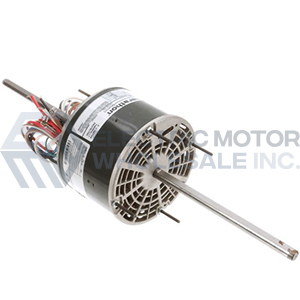

1/3HP MARATHON 1075RPM 48Y 208-230V OPAO 1PH MOTOR X045
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: X045
Stock # X045
Price: $96.00
Compare At: $168.00
