7.5HP MARATHON 1800RPM 213T 575V TEFC 3PH MOTOR U630

MARATHON U630 has been superseded by E2141

Catalog Number:  U630
Model Number:  213TTFW4030
Description:  7.5HP,1800RPM,213T,575V,TEFC,3PH,60HZ
Ship Weight:  24 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Rigid base
  • Heavy gauge steel frame
  • Totally enclosed fan-cooled
  • 1 3/8" shaft output diameter
  • Ball bearings
  • 1.25 Service Factor
  • F1 Mounting only, cannot reassemble to F2
  • Accepts C-Face kit catalog number A609
  • Efficiency levels meet EISA requirements
  • UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

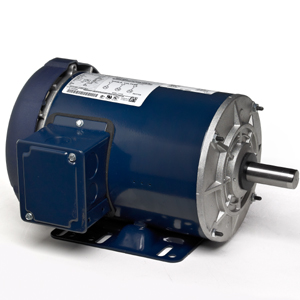

7.5HP MARATHON 1800RPM 213T 575V TEFC 3PH MOTOR U630
