3HP MARATHON 1800RPM 182T 200V TEFC 3PH MOTOR U605A

Catalog Number:  U605A
Model Number:  182TTFW4327
Description:  3HP,1800RPM,182T,200V,TEFC,3PH,60HZ
Ship Weight:  61 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Rigid base
  • Heavy gauge steel frame
  • Totally enclosed fan-cooled
  • 1 1/8" shaft output diameter
  • Ball bearings
  • Accepts C-Face kit catalog number A666
  • F1 Mounting only, cannot reassemble to F2
  • UL Recognized and CSA Certified
  • Efficiency levels meet EISA requirements
  • Footnotes: 13

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 182T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code K
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 206
Opposite End Bearing Size 205
Weight 60.6 LB
CE Y CSA Y
UL Recognized Construction
Thermal Protection

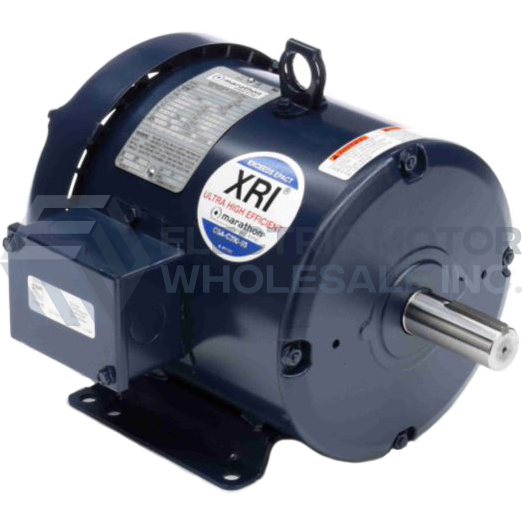

3HP MARATHON 1800RPM 182T 200V TEFC 3PH MOTOR U605A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U605A
Stock # U605A
